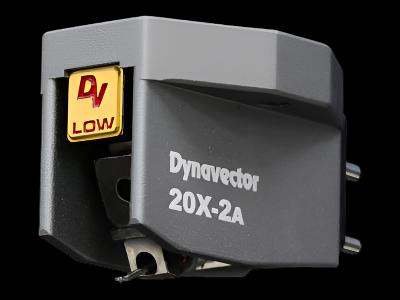

DV-20X2A H/L Moving Coil Cartridge

For more than 35 years Dynavector have established an enviable reputation for producing affordable high quality moving coil cartridges. Using the same base structure as the higher-end models XX-2A and Te Kaitora Rua, the new 20X-2A has a solid aluminium alloy body, hard aluminium cantilever and a Micro-Ridge stylus tip.

The new 20X-2A model is a new model, manufactured with a special annealing process that focuses on optimizing the magnetic properties through controlled annealing temperature, environment, heating duration, and heating / cooling rates, resulting in delivery of expansive resonant sound without distortion and unrivaled resolution.

This DV-20X2A phono cartridge has 2 types, in order to match your system.
The 20X2A-L (low output model) has typical moving coil cartridge low output, while the 20X2A-H (high output model) is an MC cartridge that suitable for use with most moving magnet phono stage or preamp/amp inputs. The high output version is ideal for those who want to fully enjoy the sound from a moving coil cartridge, without the need to use a step up transformer or high gain phono preamp.

DV-20XA has a solid aluminum alloy body and a rigid magnet construction similar to XX-2A. The cantilever is a 6mm length of hard aluminum pipe with a Micro Ridge stylus. The magnetic flux damping and softened magnetism along with powerful neodymium magnets gives the 20X2A-H a healthy 2.8 mV output - suitable for most MM inputs. The 20X2A-L has an output of 0.3 mV ideal for most MC phono stages.

Specifications:
Type: High/Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage: 2.8mV (High) / 0.3mV(Low) (at 1KHz, 5cm/sec)
Channel Separation: 25 dB (at 1KHz)
Channel Balance: 1.0 dB (at 1KHz)
Frequency Response: 20 - 20,000Hz (± 1dB)
Compliance: 12 mm/N
Tracking Force: 1.8 - 2.2 g
Impedance: 150 ohms (High) / 5 ohms (Low)
Recommended Load Impedance:  1,000 ohms (High)  /  greater than 30 ohms (Low)
Cantilever: 6mm length, hard aluminium pipe
Stylus Tip: Micro Ridge Nude diamond
Weight: 9.2 g
