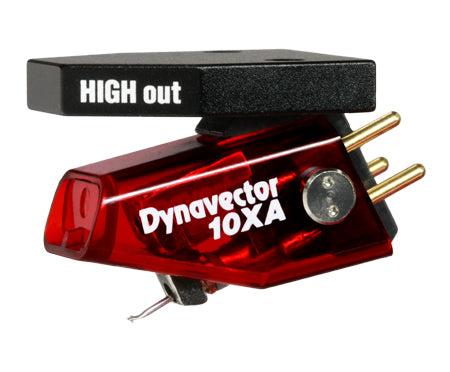

DV-10XA H/L Moving Coil Cartridge

The Dynavector 10X series is a high output Moving Coil (MC) Cartridge that has been acclaimed worldwide since its release in 1978, amazing the audio industry by unleashing something that was long considered a challenge for MC cartridges. Since its debut, the 10X series has continuously evolved to deliver a better listening experience for users.

Now, in 2025, the 10X series reaches new heights of performance with a newly developed magnetic circuit that incorporates Dynavector's proprietary "Special Magnetic Annealing" technology.

The new 10XA model delivers exceptionally smooth and articulate analog playback, offering a listening experience that goes far beyond what is expected from an entry-level cartridge.

This 10XA phono cartridge has 2 types, in order to match your system.
The 10XA-L (low output model) has typical moving coil cartridge low output, while the 10XA-H (high output model) is an MC cartridge that suitable for use with most moving magnet phono stage or preamp/amp inputs. The high output version is ideal for those who want to fully enjoy the sound from a moving coil cartridge, without the need to use a step up transformer or high gain phono preamp.

The 10XA-H has a healthy 2.8 mV output - suitable for most MM inputs. The 10XA-L has an output of 0.5 mV ideal for most MC phono stages.

Specifications:
Type: High/Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage: 2.8mV (High) / 0.5mV(Low) (at 1KHz, 5cm/sec)
Channel Separation: 25 dB (at 1KHz)
Channel Balance: 1.0 dB (at 1KHz)
Frequency Response: 20 - 20,000Hz (± 1dB)
Compliance: 12 mm/N
Tracking Force: 1.8 - 2.2 g
Impedance: 150 ohms (High) / 32 ohms (Low)
Recommended Load Impedance:  1,000 ohms (High)  /  100 ohms or higher (Low)
Cantilever: 6mm length, hard aluminium pipe

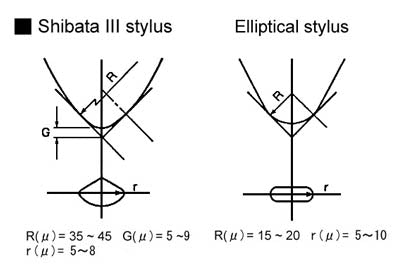

Stylus Tip: Shibata III line contact nude diamond
Weight: 7.5 g
